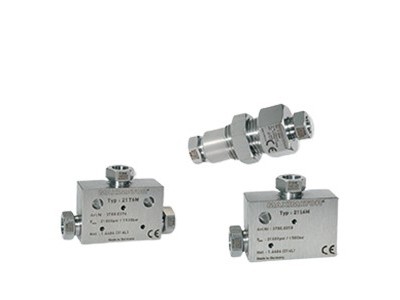

所有的螺套总成有多种用途。中压接头都具有配套的卡圈和螺套。
MAXIMATOR抗振接头系列适用于管路存在大的机械振动和冲击的工况下。
MAXIMATOR中压管接头和螺套总成与其它厂商生产的高压系统是可以匹配的。
技术参数
|
阀体材质 |
316 L (1.4404) |
|
卡圈材质 |
316 L (1.4404) |
|
螺套材质 |
316 L (1.4404) |
|
温度范围 |
-50°C to +350°C |
|
连接形式 |
4MF, 6MF, 9MF, 12MF, 16MF |
|
类型 |
管径 |
型号 |
孔径 |
| in |
mm |
||
|
抗振接头总成1500bar |
1/4 |
21AVA4M |
|
|
3/8 |
21V4M072 |
||
|
9/16 |
21AVA9M |
||
|
3/4 |
21AVA12M |
||
|
1 |
21AVA16M |
||
|
隔板连接器 |
1/4 |
21BF4M |
2.70 |
|
3/8 |
21BF6M |
5.10 |
|
|
9/16 |
21BF9M |
7.80 |
|
|
3/4 |
21BF12M |
11.10 |
|
|
1 |
21BF16M |
14.30 |
|
|
卡圈 |
1/4 |
MCLXM40 |
|
|
1/4 |
21C4M |
||
|
3/8 |
21C6M |
||
|
9/16 |
21C9M |
||
|
3/4 |
21C12M |
||
|
1 |
21C16M |
||
|
夹头 |
1/4 |
21AVB4M |
|
|
3/8 |
21AVB6M |
||
|
9/16 |
21AVB9M |
||
|
3/4 |
21AVB12M |
||
|
1 |
21AVB16M |
||
|
四通 |
1/4 |
21X4M |
2.70 |
|
3/8 |
21X6M |
5.10 |
|
|
9/16 |
21X9M |
7.80 |
|
|
3/4 |
21X12M |
11.10 |
|
|
1 |
21X16M |
14.30 |
|
|
弯头 |
1/4 |
21L4M |
2.70 |
|
3/8 |
21L6M |
5.10 |
|
|
9/16 |
21L9M |
7.80 |
|
|
3/4 |
21L12M |
11.10 |
|
|
1 |
21G16M |
14.30 |
|
|
螺套 |
1/4 |
21L4M |
|
|
3/8 |
21L6M |
||
|
9/16 |
21L9M |
||
|
3/4 |
21L12M |
||
|
1 |
21G16M |
||
|
压紧螺母 |
1/4 |
21AVG4M |
|
|
3/8 |
21AVG6M |
||
|
9/16 |
21AVG9M |
||
|
3/4 |
21AVG12M |
||
|
1 |
21AVG16M |
||
|
堵头 |
1/4 |
21P4M |
|
|
3/8 |
21P6M |
||
|
9/16 |
21P9M |
||
|
3/4 |
21P12M |
||
|
1 |
21P16M |
||
|
卡套 |
1/4 |
21AVC4M |
|
|
3/8 |
21AVC6M |
||
|
9/16 |
21AVC9M |
||
|
3/4 |
21AVC12M |
||
|
1 |
21AVC16M |
||
|
直通接头 |
1/4 |
21F4M |
2.70 |
|
3/8 |
21F6M |
5.10 |
|
|
9/16 |
21F9M |
7.80 |
|
|
3/4 |
21F12M |
11.10 |
|
|
1 |
21F16M |
14.30 |
|
|
三通 |
1/4 |
21T4M |
2.70 |
|
3/8 |
21T6M |
5.10 |
|
|
9/16 |
21T9M |
7.80 |
|
|
3/4 |
21T12M |
11.10 |
|
|
1 |
21T16M |
14.30 |
|
|
管帽 |
1/4 |
21TC4M |
|
|
3/8 |
21TC6M |
||
|
9/16 |
21TC9M |
||
|
3/4 |
21TC12M |
11.10 |
|
|
1 |
21TC16M |
14.30 |
|
|
标准安全头 |
3/4 |
21SH12M |
6.00 |
|
1/4 |
21SH4M |
6.00 |
|
|
3/8 |
21SH6M |
6.00 |
|
|
9/16 |
21SH9M |
6.00 |
